1. Planar Homography first!

  1. normalize corresponding points by scaling them to have a mean distance of \(\sqrt{2}\) from the origin each

  2. solve \(H\vec{x} \times \vec{x^\prime} = 0\) since the two terms are “projectively equal” using the form \([\vec{x^\prime}]^\top_\times \begin{bmatrix}x^\top & 0 & 0 \\ 0 & x^\top & 0 \\ 0 & 0 & x^\top \\ \end{bmatrix} \vec{h} = \begin{bmatrix}0 & -w^\prime x^\top & y^\prime x^\top \\ w^\prime x^\top & 0 & -x^\prime x^\top \\ \end{bmatrix} \vec{h} = 0\)

  3. re-adjust the homography matrix \(\tilde{H}\) with the normalization transformations, and use it to warp one image to the perspective of the other. Composite the two images

Geoviz textbook

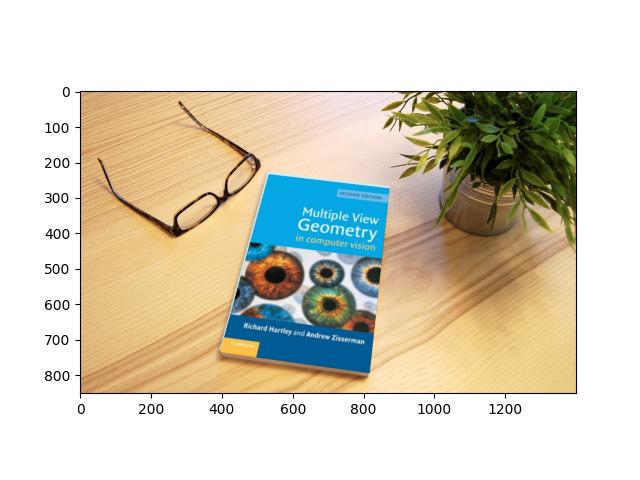

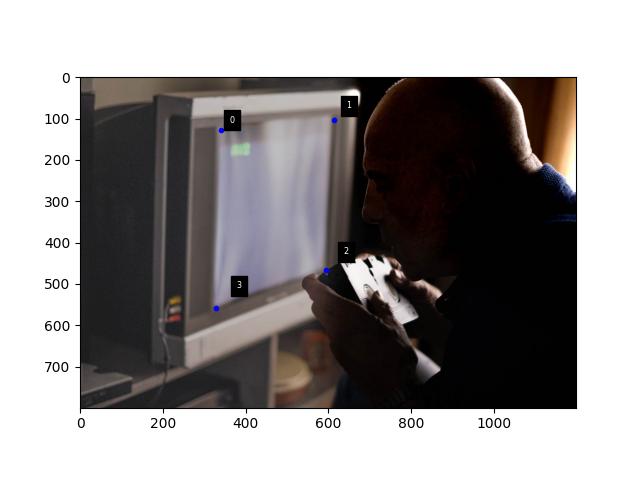

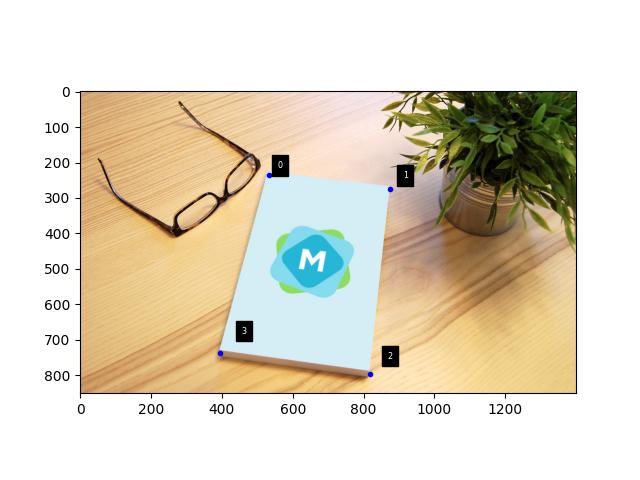

Normal Image Perspective Image Annotated corners in Perspective Image Warped and Overlaid Image

Geoviz lecture video

Normal Image Perspective Image Annotated corners in Perspective Image Warped and Overlaid Image

2. Affine rectification

  1. Choose two pairs of should-be parallel lines.
  2. for each, find the intersections \(v_1\) and \(v_2\). These are the images of the points at infinity in the original space
  3. find the line \(l'\) passing through \(v_1\) and \(v_2\). this is the should-be line at infinity
  4. find \(H\) s.t. \(l'\) is mapped to line at infinity via \(l_\infty = H^{-T}l'_\infty\).
    • \[H = \begin{bmatrix}1& 0& 0 \\ 0& 1& 0 \\ l1& l2& l3 \end{bmatrix}\]
  5. apply H to the rest of the image.

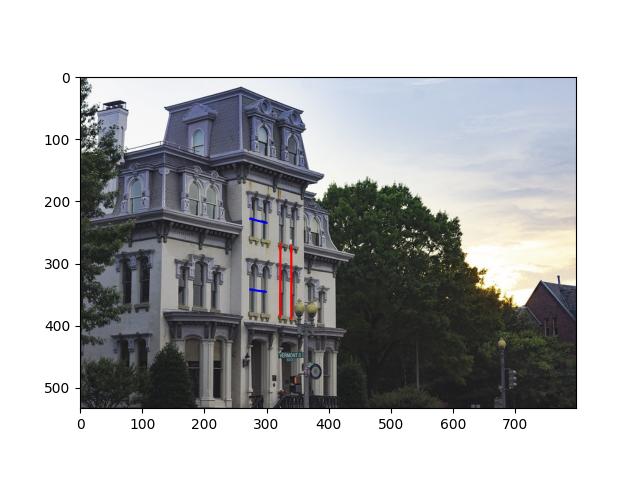

dc_building

Input Image Annotated parallel lines on input image Affine-Rectified Image
Before After
-0.999981909088662 -0.99988715409404
-0.9953270126289978 -0.9997874837323044

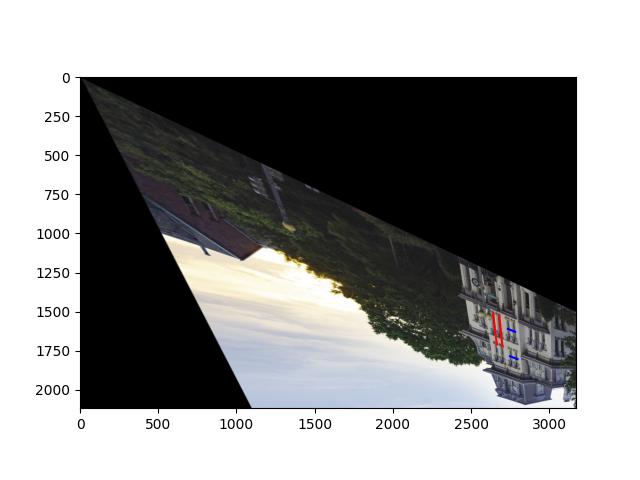

Test lines on Input Image Test lines on Affine-Rectified Image

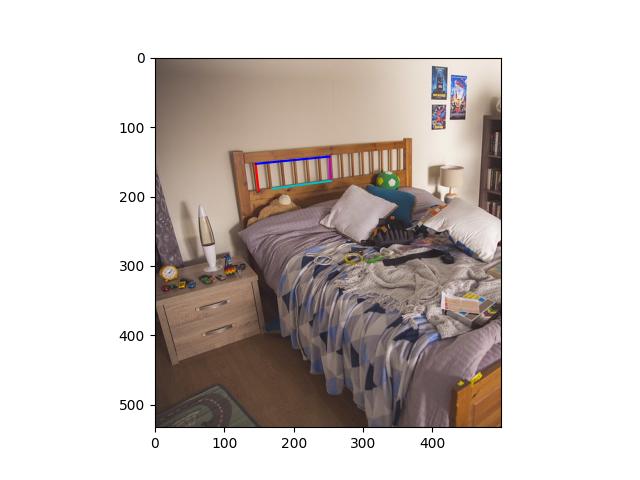

bedroom

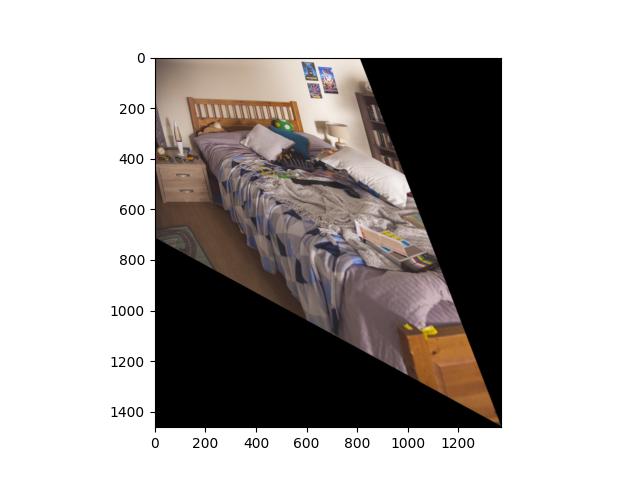

Input Image Annotated parallel lines on input image Affine-Rectified Image
Before After
-0.8265068089546446 -0.995278553251015
-0.8541666090343468 -0.9927762992126816
Test lines on Input Image Test lines on Affine-Rectified Image

facade

Input Image Annotated parallel lines on input image Affine-Rectified Image
Before After
0.7842324298864692 0.9999781395179719
0.999997015205378 0.9999869448826934

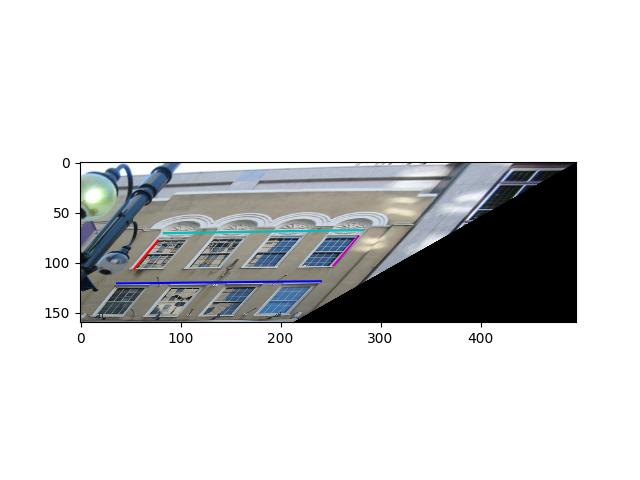

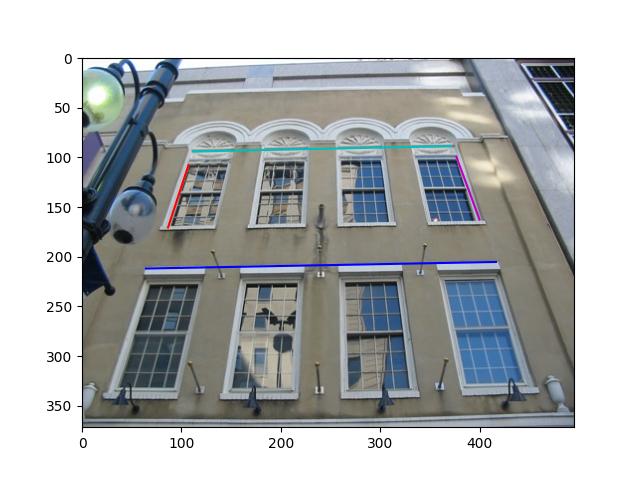

Test lines on Input Image Test lines on Affine-Rectified Image

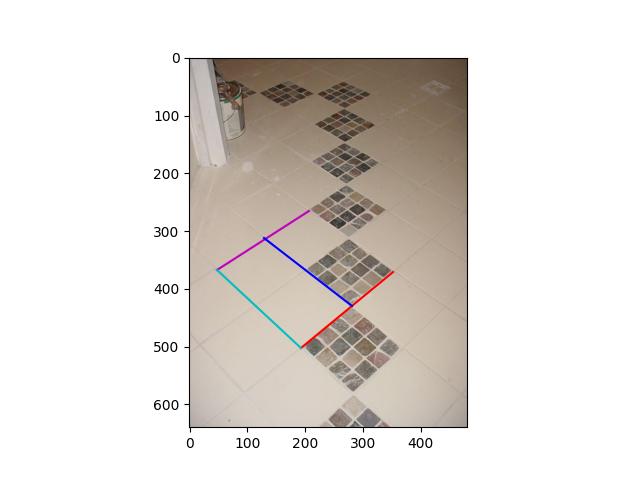

tiles3

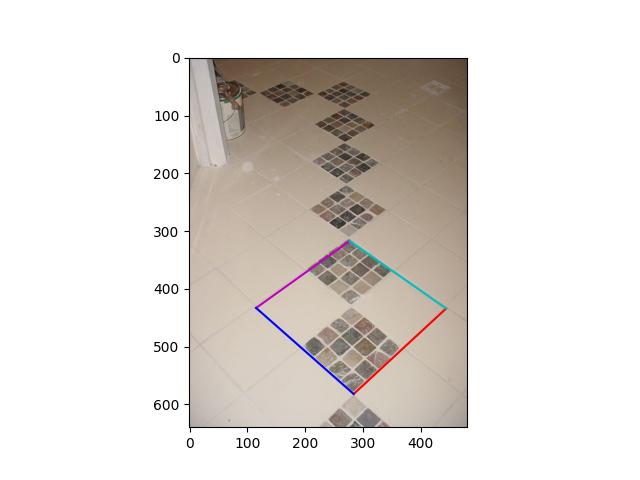

Input Image Annotated parallel lines on input image Affine-Rectified Image
Before After
0.992840000200369 0.9999744329310002
0.9958562285955483 0.9995508549532741

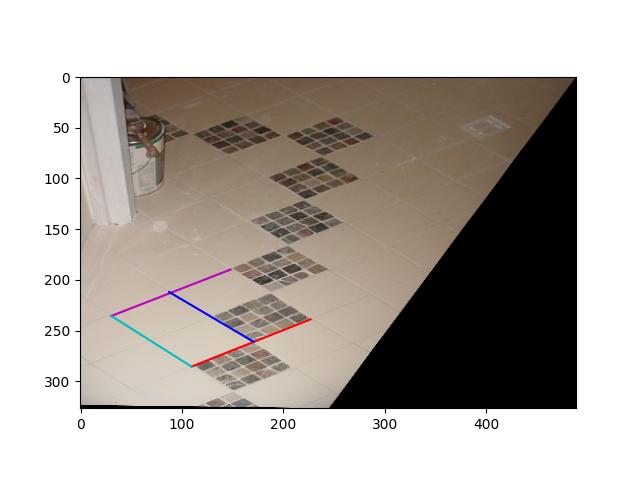

Test lines on Input Image Test lines on Affine-Rectified Image

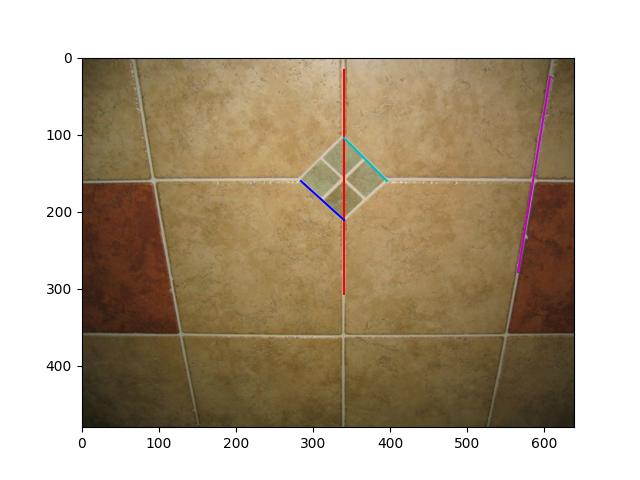

tiles5

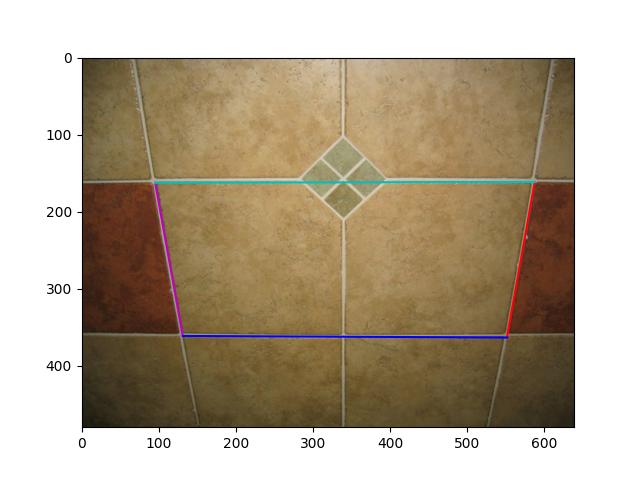

Input Image Annotated parallel lines on input image Affine-Rectified Image
Before After
0.9868327646462675 0.9999251970022867
0.9987191070813484 0.9999383464088628

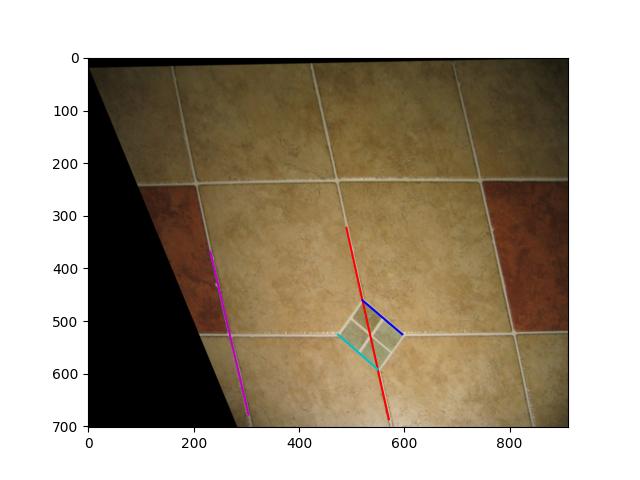

Test lines on Input Image Test lines on Affine-Rectified Image

3. Metric Rectification

  1. for perpendicular \(l, m\), we know that \(l^{\prime \top} C^{*\prime}_\infty m^\prime = 0\) under similarity transform.
  2. first affine rectify the image with two pairs of parallel lines. If affine rectified, \(C^{*\prime}_\infty = \begin{bmatrix}a & b/2 & 0 \\ b/2 & c & 0 \\ 0 & 0 & 0\end{bmatrix}\).
  3. using two pairs of perpendicular lines, ie. two perpendicularity constraints, find the rest of \(C^{*\prime}_\infty\) using \(l^{\prime \top} C^{*\prime}_\infty m^\prime = 0\).
    • change it into the form \(Ac=0\).
  4. \(C^{*\prime}_\infty = H C^{*}_\infty H^\top\) where \(H\) is a similarity transform and \(C^{*}_\infty = IJ^\top + JI^\top = \begin{bmatrix}1 & 0 & 0 \\ 0 & 1 & 0 \\ 0 & 0 & 0\end{bmatrix}\)
    • now that both \(C\) are known, compute \(H\) using SVD assuming symmetric rank=2 matrix:
    • \[C^{*\prime}_\infty \underset{\text{SVD}}{=} U\begin{bmatrix}\sigma_1 & 0 & 0 \\ 0 & \sigma_2 & 0 \\ 0 & 0 & 0\end{bmatrix}U^\top \Rightarrow HU\begin{bmatrix}\sigma_1 & 0 & 0 \\ 0 & \sigma_2 & 0 \\ 0 & 0 & 0\end{bmatrix}U^\top H^\top = C^{*}_\infty\]
    • \[H = \begin{bmatrix}\sqrt{\sigma_1^{-1}} & 0 & 0 \\ 0 & \sqrt{\sigma_2^{-1}} & 0 \\ 0 & 0 & 0\end{bmatrix}U^\top\]

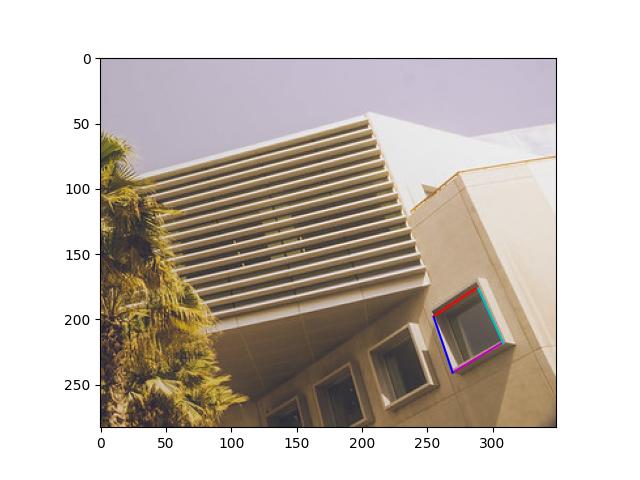

campus

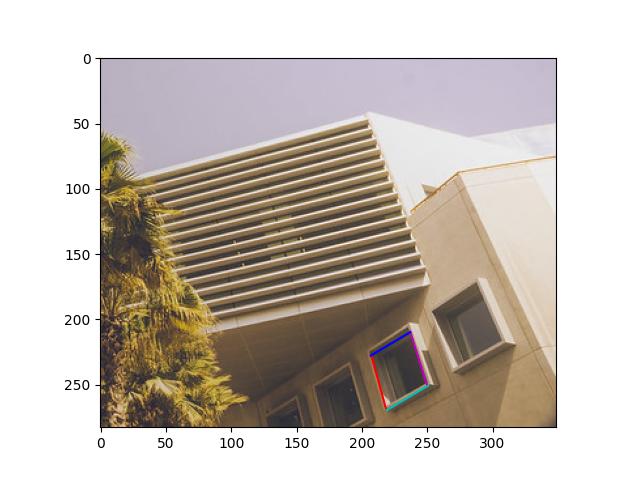

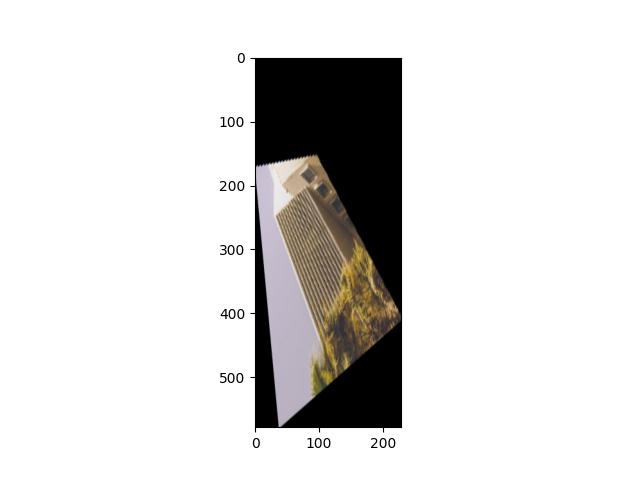

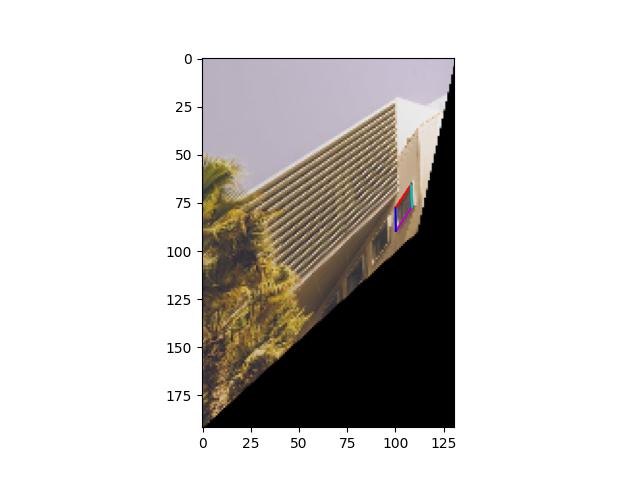

Input Image Annotated perpendicular lines on input image Annotated perpendicular lines on Affine-Rectified Image Rectified Image
After affine rectification After metric rectification
0.8231939730650926 0.37422836314281155
0.8008085283831923 0.07297455097223778
Test lines on Input Image Test lines on Metric-Rectified Image

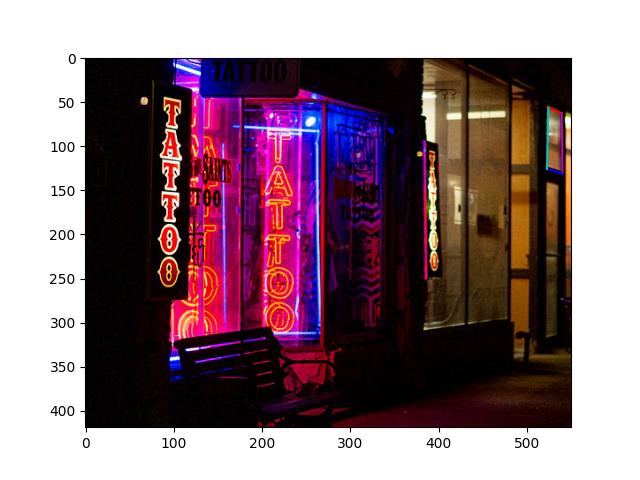

tattoo_shop

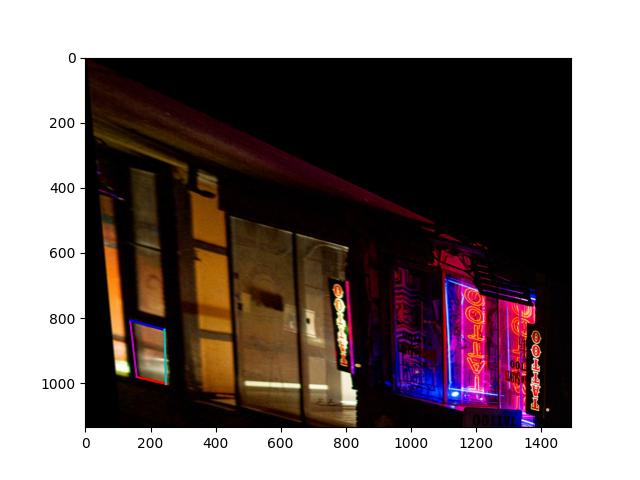

Input Image Annotated perpendicular lines on input image Annotated perpendicular lines on Affine-Rectified Image Rectified Image
After affine rectification After metric rectification
0.3145167006076802 0.020512798169055928
0.3158525740824645 0.01701420812579155

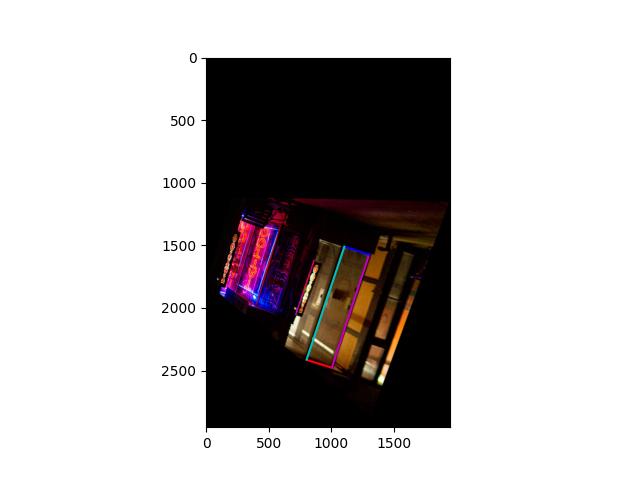

Test lines on Input Image Test lines on Metric-Rectified Image

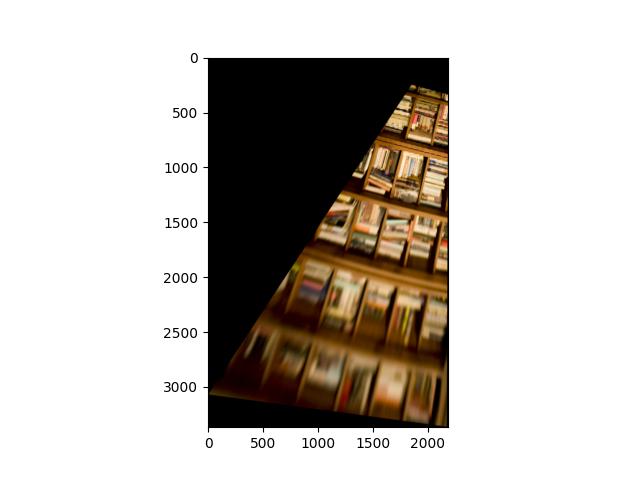

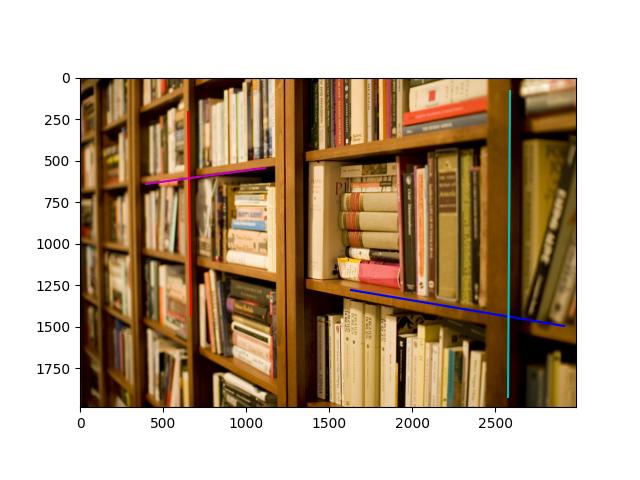

book1

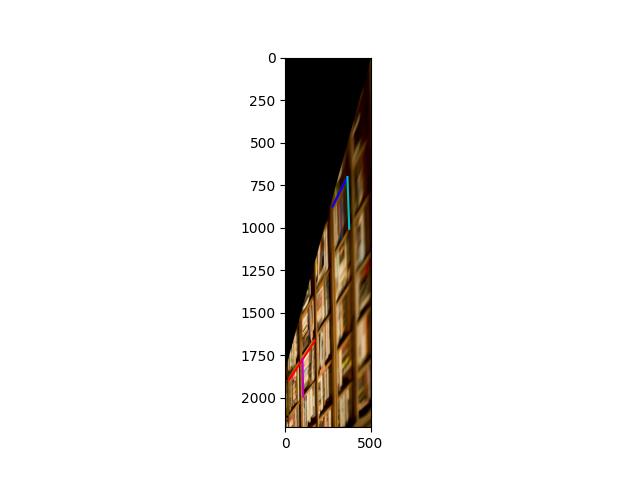

Input Image Annotated perpendicular lines on input image Annotated perpendicular lines on Affine-Rectified Image Rectified Image
After affine rectification After metric rectification
-0.7910660578780705 0.02881911197233629
-0.8370454800867251 -0.016234908527699352

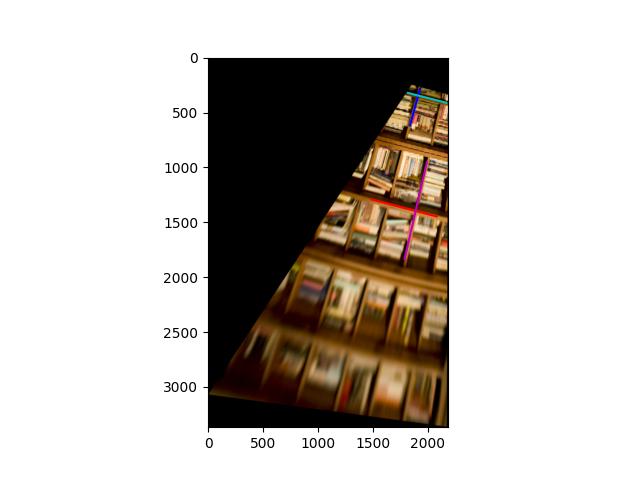

Test lines on Input Image Test lines on Metric-Rectified Image

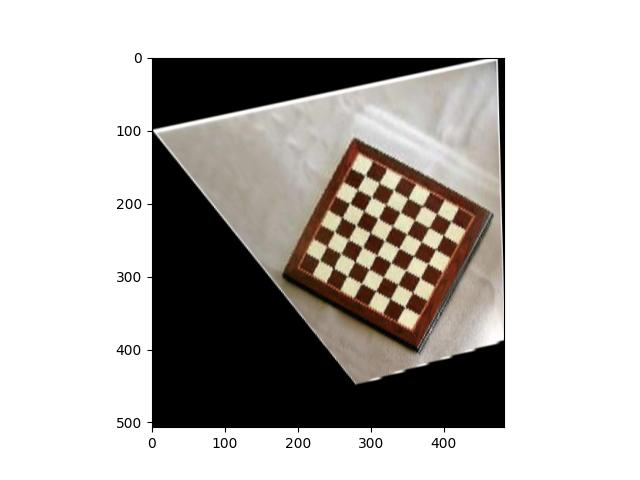

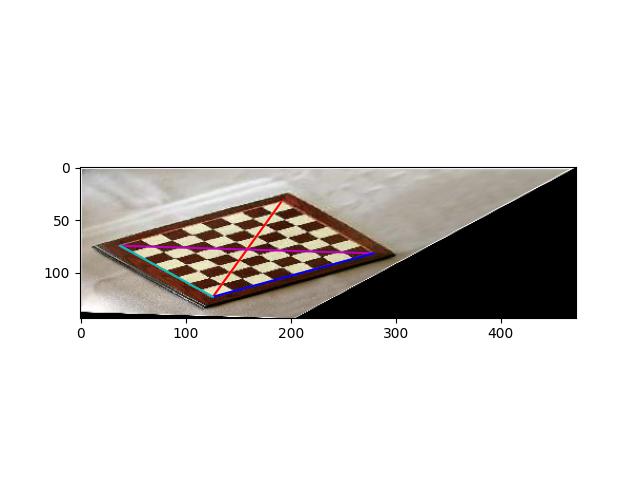

chess1

Input Image Annotated perpendicular lines on input image Annotated perpendicular lines on Affine-Rectified Image Rectified Image
After affine rectification After metric rectification
0.704660360741711 -0.021182064318718895
-0.5693656936237491 -0.00964023413980811

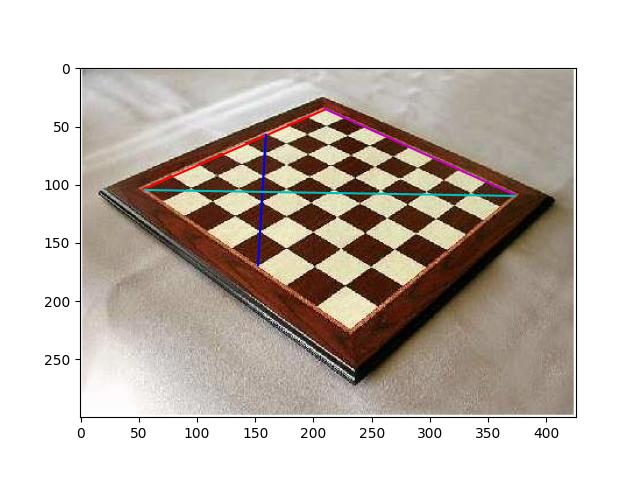

Test lines on Input Image Test lines on Metric-Rectified Image

checker1

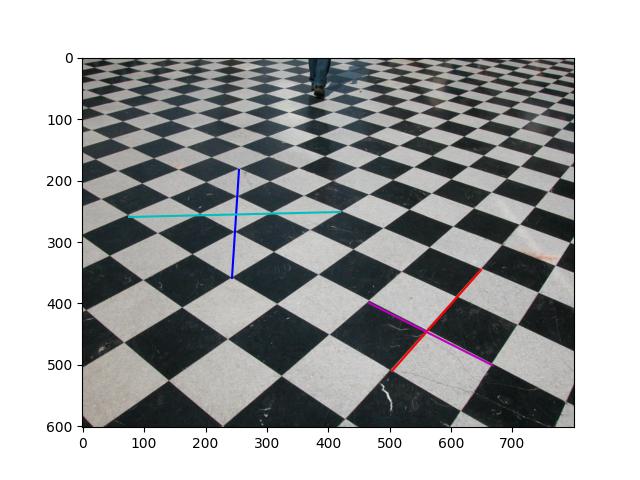

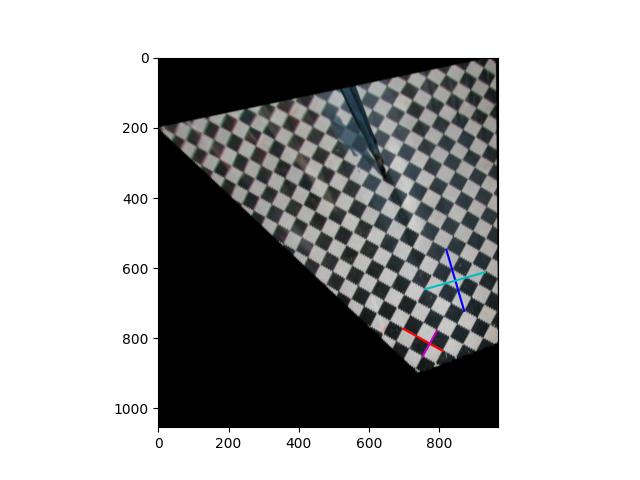

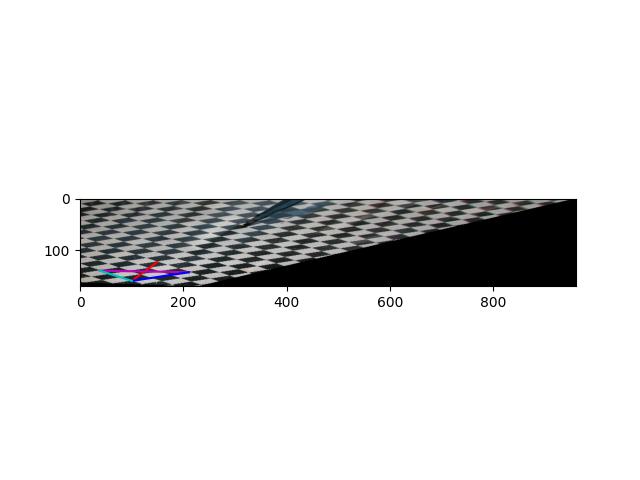

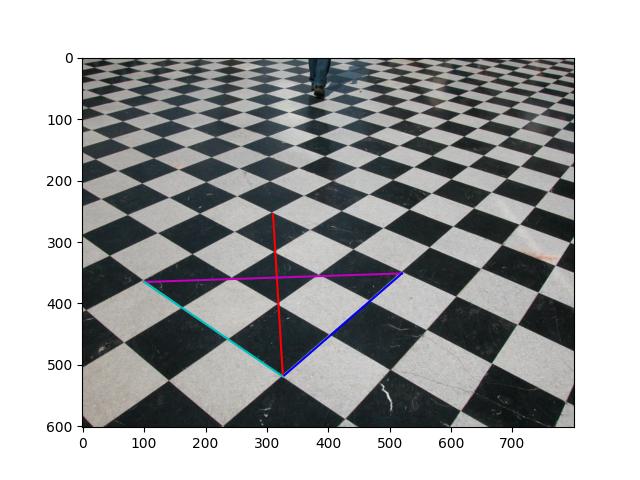

Input Image Annotated perpendicular lines on input image Annotated perpendicular lines on Affine-Rectified Image Rectified Image
